Mobility Technology Center (MTC)

Mobility Technology Center, dedicated to the automotive industry

~Providing EMC testing service specialized for advanced automotive electronic systems~

In the summer of 2020, we will open the Mobility Technology Center (MTC) that is dedicated to the automotive industry where we will perform testing service for ECUs in development of autonomous driving, ADAS, etc. and EMC testing service of in-vehicle electrical and electronic devices, and wireless tests of the Short Range Device (SRD) e.g. smart keyless system. The MTC will be located in the Mikawa area in the Aichi prefecture.

Through synergies between high expertise in electrical and electronic equipment and deep knowledge of automobiles, we support the “now” and “future” automobile industries.

Diversification and Complexity of Tests - The Current State of the Automobile

Diversified and more complex functions to be tested

The components and systems for ADAS and autonomous driving is consisted of Sensor-ECU-actuator combination, Relationship to other systems including powertrain, ABS, and steering, etc.

The development of these includes evaluation of system functions such as actuator operation, output port voltage, and code transmission via CAN. It is becoming more and more difficult to plan and execute complex tests.

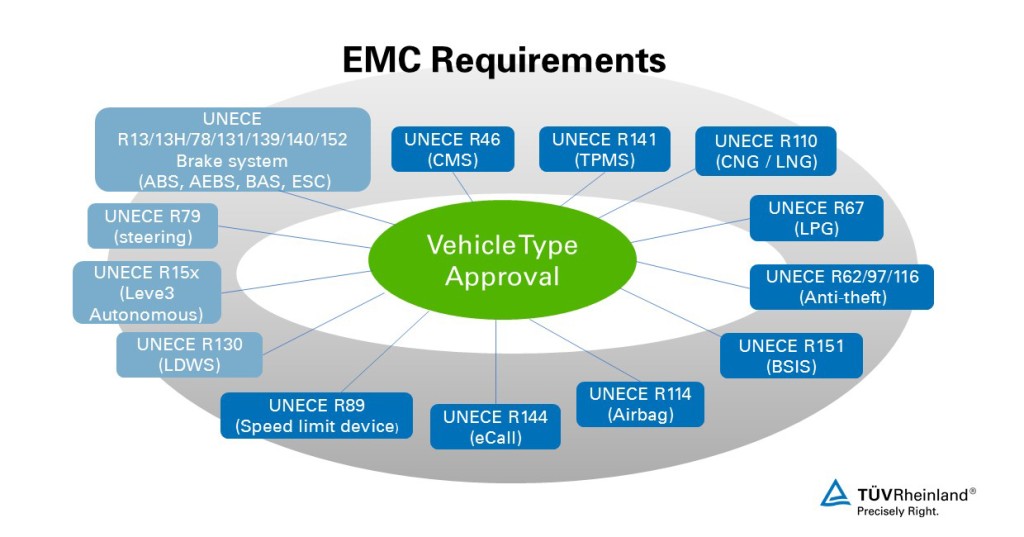

EMC-Requirement-For-Automotive

Collaboration between EMC/Wireless Engineers and Automotive Engineers is a key success factor

The EMC test is mandatory for following many regulations, such as brake/steering/LDWS.
The testing scope are not only for UNECE Regulation No.10, but also to verify functionality of each system under immunity testing according to each individual regulations and their requirements.
The test plan can only be made through a collaboration of EMC/Wireless Engineers and Automotive Engineers.

We, TUV Rheinland, can also support the acquisition of type approval along with the EMC test. Please feel free to contact us.

Flexibility for a variety of tests

The Mobility Technology Centre (MTC) is a development centre dedicated to the automotive industry.
We are able to plan and conduct testing of complex automotive electric/electronic systems.

MTC allows you to plan and carry out test plans for complex systems such as Autonomous Driving and ADAS. Furthermore, we will utilize the test results and provide the type approval service.
During making a test plan, we flexibly support various tests demands by combining with tests in the millimeter wave anechoic chamber, electrical safety test, IP test, Li-Io battery test, CMS test, electric motor test, etc. in our Yokohama (GTAC) & Osaka (KTAC) laboratories.

In addition, we can help you to integrate your products with the functional safety (ISO 26262) and We offer testing for both automotive requirements.

Facility

· Automotive anechoic chamber: 2 units (No.1, No.3 Anechoic chamber)
· 3m Method anechoic chamber: 1 unit (No.2 Anechoic chamber)
· Shielded room: 1 unit

No.1 Anechoic chamber

Anechoic chamber size (depth x width x height) 7.0m × 5.8m × 4.1m
Measurement room size (depth x width x height) * Shield2.2m × 5.8m × 2.7m
Front compartment size (depth x width x height)3.5m × 10.0m × 2.7m
Door size (width x height)*Door for anechoic chamber1.5m × 2.0m
Door size (width x height) *Measurement room door1.0m × 2.0m

No.2 Anechoic chamber

Anechoic chamber size (depth x width x height) 9.0m × 6.0m × 6.1m
Measurement room size (depth x width x height) * Shield5.0m × 4.5m × 2.7m
Front compartment size (depth x width x height)4.3m × 4.5m × 2.7m
Door size (width x height)*Door for anechoic chamber1.5m × 2.0m
Door size (width x height) *Measurement room door1.0m × 2.0m

No.3 Anechoic chamber

Anechoic chamber size (depth x width x height) 7.0m × 5.8m × 3.5m
Measurement room size (depth x width x height) * Shield2.2m × 5.8m × 2.7m
Front compartment size (depth x width x height)3.6m × 6.5m × 2.7m
Door size (width x height)*Door for anechoic chamber1.5m × 2.0m
Door size (width x height) *Measurement room door1.0m × 2.0m

Shielded room

Shielded room Size (depth x width x height) 5.0m × 4.6m × 2.7m
Measurement room (depth x width x height)4.5m × 4.6m × 2.7m
Door size (width x height)1.5m × 2.0m
Power supply specifications DC12V/24V (DC power supply/Battery), High voltage DC power supply: DC550V/ 100A, AC power: CVCF (2kVA)

Emission Testing

Supported standard Test method Frequency range
Radiated emissionCISPR 25ALSE100kHz – 6GHz
Conducted emissionCISPR 25Voltage100kHz - 200MHz
CISPR 25Current probe10Hz – 1GHz
Transient emissionISO 7637-2

Immunity Testing

Supported standard Test method Frequency range Test level
Electromagnetic field immunityISO 11452-2ALSE80MHz – 6GHz200V/m
Horizontal:200MHz~
Vertical:80MHz~
Radar pulse1.2GHz – 1.4GHz
2.7GHz – 3.1GHz
600V/m
ISO 11452-3TEM cell10kHz – 400MHz200V/m
ISO 11452-4BCI100kHz – 2GHz200mA
ISO 11452-5Stripline10kHz – 500MHz200V/m
ISO 11452-8Magnetic fieldsDC, 15Hz – 200kHzDC, 15Hz – 1kHz:1000A/m
1kHz – 200kHz:1000A/m-10A/m
ISO 11452-9Portable transmitters26MHz – 6GHz-
SAE J1113-25Tri-plate line10kHz – 1GHz250V/m
Transient immunityISO 7637-2
ISO 7637-3
---

ESD Testing

Supported standard Test level
ISO 10605/IEC 61000-4-2±30kV

Wireless Testing

Supported standard Frequency range
EN 300 220/ EN 300 330/ EN 300 32810kHz – 40GHz
EN 301 489-1EN 61000-4-2±8kV
EN 61000-4-380MHz – 6GHz、3V/m
EN 61000-4-4±2kV
EN 61000-4-5±4kV
EN 61000-4-6150kHz – 80MHz、3V
ISO 7637-2

Full service lineup

One-stop service from EMC Testing to Type Approval support

Automotive Systems and Components
EMC Testing
UNECE Regulation No.10
R&D(OEM specifications)
Wireless TestingTest for FCC/RED/JRL (Japan Radio Law) for
keyless entry, smart key, TPMS, and car navigation systems
